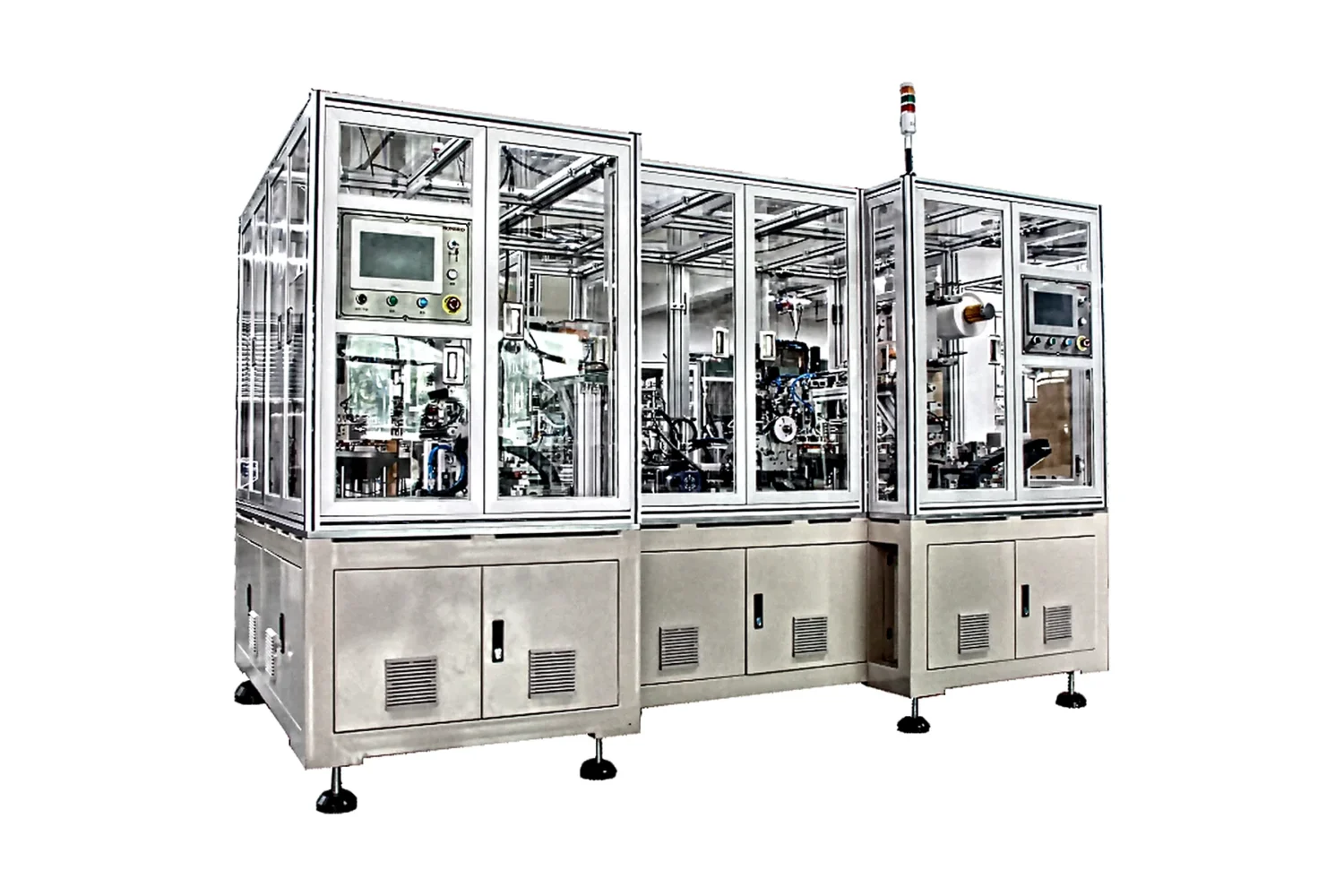

Automatic Z-Stacking Machine – Prismatic Cell
This device is suitable for Z-shaped lamination of lithium-ion battery anode and cathode plates and separator. The anode is folded first, with anode and cathode tabs on the same side or opposite sides. After lamination, the separator is heated and side adhesive is applied.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
This device is suitable for Z-shaped lamination of lithium-ion battery anode and cathode plates and separator. The anode is folded first, with anode and cathode tabs on the same side or opposite sides. After lamination, the separator is heated and side adhesive is applied.
Key features
- Optional side-adhesive or flat-adhesive taping.
- The end-winding separator and number of end-winding turns can be set.
- Cell discharge can interface with the full-line conveyor.
- The machine can be upgraded to a cutting and folding machine, with cell-end dust removal after separator cutting.
Technical specifications
| Model options | SZ-032-A; SZ-032-B; SZ-032-C; SZ-032-D; SZ-032-E |
|---|---|
| Electrode location mode | Project-specific — confirmed during technical review |
| Single-piece efficiency | Project-specific — confirmed during technical review |
| Compatible electrode size | Project-specific — confirmed during technical review |
| Stacking table structure | Project-specific — confirmed during technical review |
| Ultrasonic and missing-angle detection | Project-specific — confirmed during technical review |
| Alignment of adjacent electrodes | Project-specific — confirmed during technical review |
| Overall electrode alignment | Project-specific — confirmed during technical review |
| Alignment between the electrode and adjacent separator | Project-specific — confirmed during technical review |
| Separator cut-off and reverse closure time | Project-specific — confirmed during technical review |
| Dusting mode | Project-specific — confirmed during technical review |
| Separator electrostatic removal | Project-specific — confirmed during technical review |
| MES function | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Power | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
| Dimensions | Project-specific — confirmed during technical review |
| Weight | Project-specific — confirmed during technical review |
