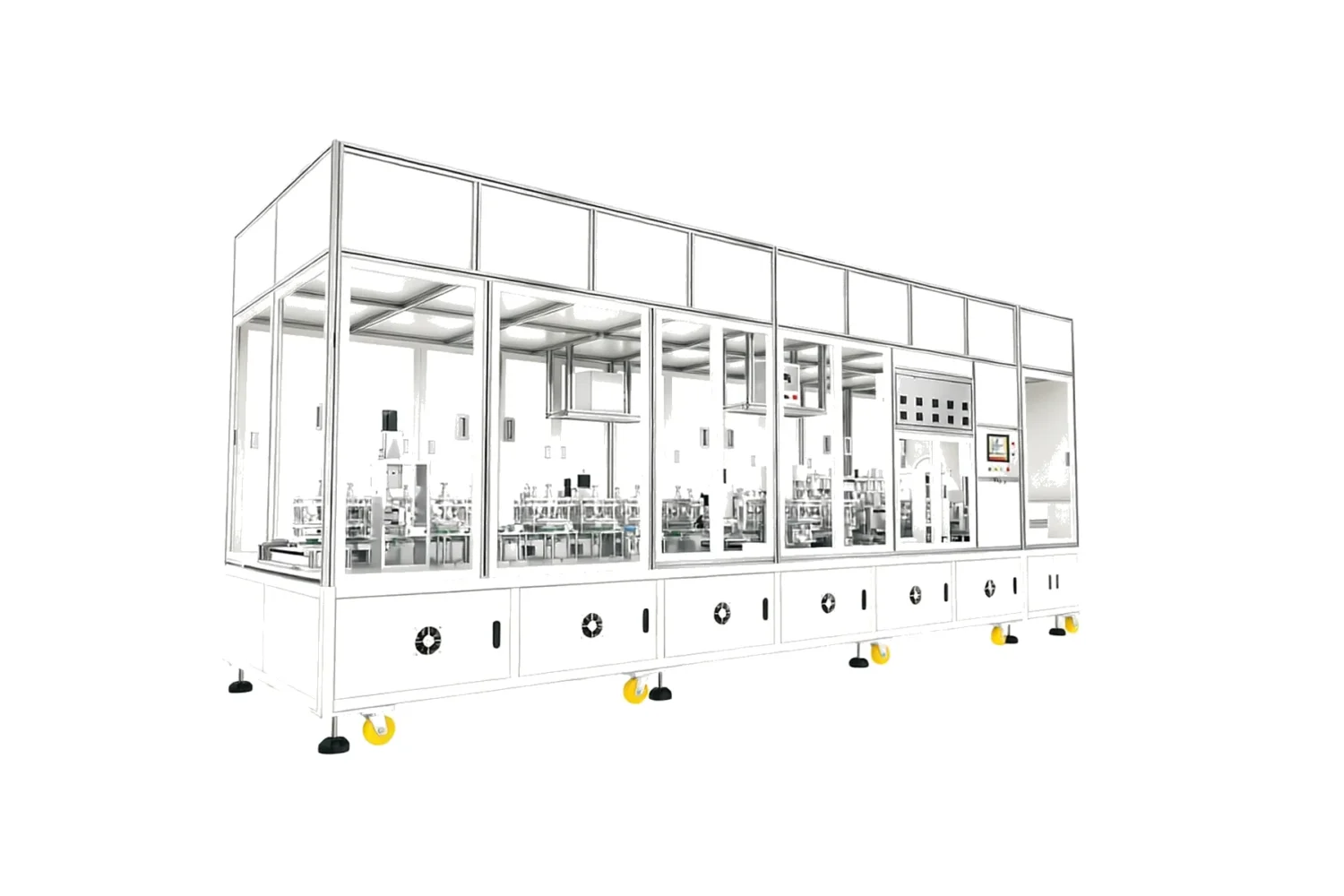

Automatic Degassing, Final Sealing and Sizing Machine – Pouch Cell
Used for pouch-cell degassing, vacuum sealing, and sizing. Selectable feeding and discharge options are provided, together with pre-cavity positioning, side sealing, puncturing, degassing and vacuum sealing, air-bag removal, secondary precision sealing, side voltage testing, left and right fine-edge cutting, single or double folding, optional dispensing, hot-edge shaping, optional thickness testing, barcode scanning, weighing, NG sorting, and automatic discharge.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
Used for pouch-cell degassing, vacuum sealing, and sizing. Selectable feeding and discharge options are provided, together with pre-cavity positioning, side sealing, puncturing, degassing and vacuum sealing, air-bag removal, secondary precision sealing, side voltage testing, left and right fine-edge cutting, folding, optional dispensing, hot-edge shaping, optional thickness testing, barcode scanning, weighing, NG sorting, and automatic discharge.
Key features
- After feeding, a manipulator transfers the cell to the sealing cavity for automatic puncturing, degassing, and packaging.
- The equipment positions the battery for packaging; the sequence and positioning accuracy are confirmed during technical review.
- Post-packaging battery short-circuit testing prevents NG material from continuing through subsequent processes and automatically rejects it at the lower material level.
- The air-bag edge and side-sealing edge are trimmed at separate stations after positioning to ensure cutting accuracy.
- Post-forming weighing data are bound to the barcode and stored in the computer.
- Trimming precision is confirmed during technical review.
- Pre-cutting removes excess air-bag edges and prevents cross-contamination from residual electrolyte on the air bag.
- The bayonet-mounted sealing block is removable for easy maintenance.
- Cutting-tool service life and maintenance intervals are confirmed during technical review.
- The hot-edge shaping block has a buffer to prevent battery damage after folding and shaping.
Technical specifications
| Overall dimensions | Project-specific — confirmed during technical review |
|---|---|
| Machine weight | Project-specific — confirmed during technical review |
| Rated power | Project-specific — confirmed during technical review |
| Power supply | Project-specific — confirmed during technical review |
| Air supply | Project-specific — confirmed during technical review |
| Vacuum supply | Project-specific — confirmed during technical review |
| Applicable product range | Project-specific — confirmed during technical review |
| Equipment output | Project-specific — confirmed during technical review |
| Qualified rate | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
Information for project review
Please share your cell format, chemistry, target capacity, process scope, facility conditions and voltage standard.
