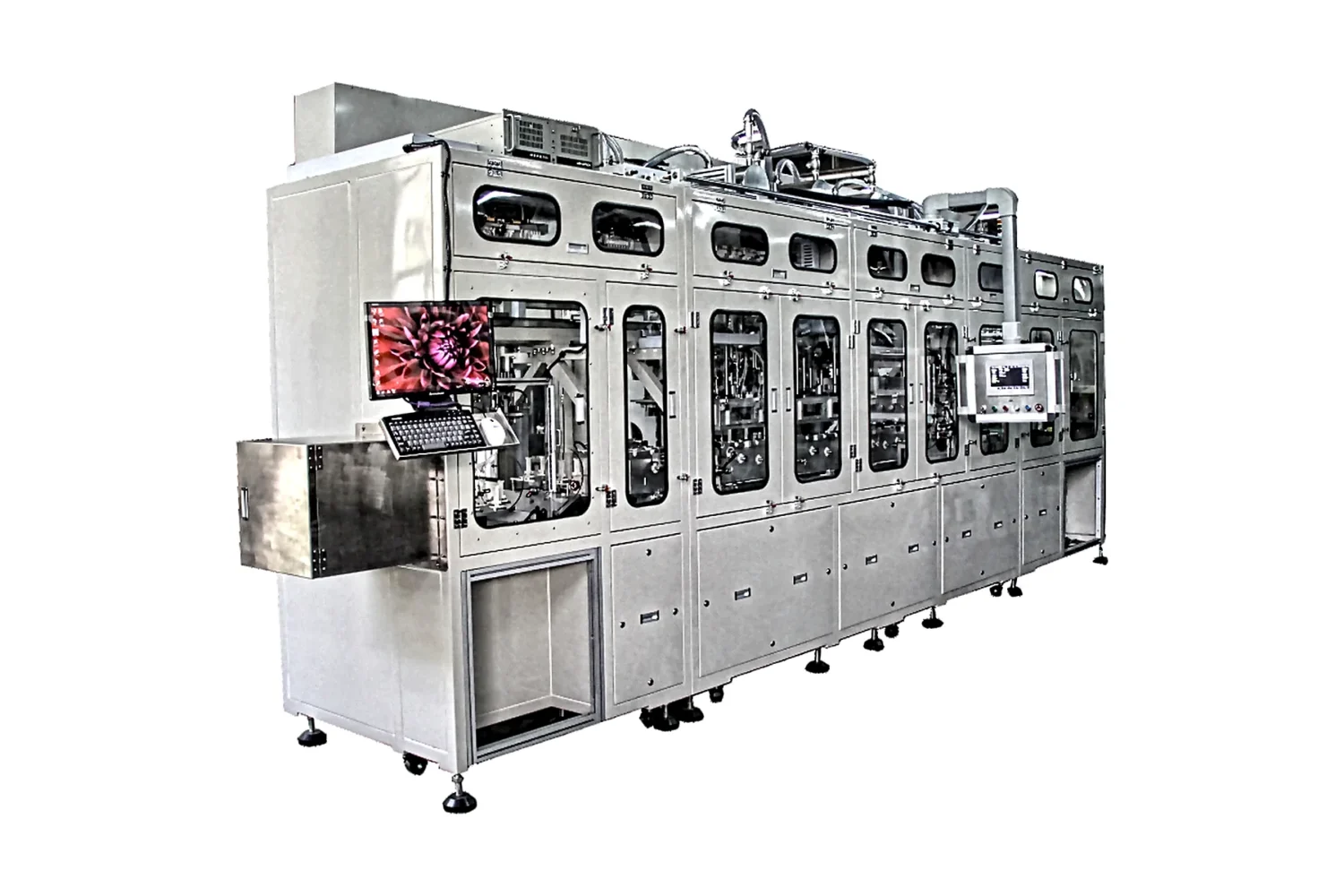

Straight-Line Electrolyte Filling Machine for Pouch Cells
Designed for mass-production automatic electrolyte filling and packaging of pouch lithium-ion batteries, with compatibility for Bluetooth batteries. Functions include automatic magazine feeding, battery barcode scanning and entry, manual electrolyte batch-number entry, pre-filling weighing, vacuum filling, vacuum standing, vacuum packaging, post-filling weighing, NG sorting, and magazine discharge.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
Designed for mass-production automatic electrolyte filling and packaging of pouch lithium-ion batteries, with compatibility for Bluetooth batteries. Functions include automatic magazine feeding, battery barcode scanning and entry, manual electrolyte batch-number entry, pre-filling weighing, vacuum filling, vacuum standing, vacuum packaging, post-filling weighing, NG sorting, and magazine discharge.
Key features
- An automatic cavity release mechanism facilitates maintenance and adjustment of internal cavity mechanisms.
- The cavity sealing station can present the sealing block for cleaning and maintenance.
- Ceramic piston filling supports stable, continuous operation; maintenance intervals are confirmed during technical review.
- Packaging sealing performance is confirmed for the selected project configuration.
- Model changeover time and staffing are confirmed during technical review; electrolyte replacement is reviewed separately.
- Screw-adjustable fixtures require no replacement parts, and all equipment manipulators use servo feeding to reduce replacement and modification costs.
- A collection box below the filling nozzle prevents dripping.
- Spreader plates and vacuum throttle valves in the filling, vacuum, and sealing cavities control vacuum flow to prevent electrolyte atomization and cell contamination caused by electrolyte extraction from the air bag.
- Movable sealing elements in the filling, standing, and sealing cavities use EPDM lip sealing rings for airtightness, corrosion resistance, and pressure retention.
Technical specifications
| Overall dimensions | Project-specific — confirmed during technical review |
|---|---|
| Machine weight | Project-specific — confirmed during technical review |
| Rated power | Project-specific — confirmed during technical review |
| Power supply | Project-specific — confirmed during technical review |
| Air supply | Project-specific — confirmed during technical review |
| Vacuum supply | Project-specific — confirmed during technical review |
| Applicable product range | Project-specific — confirmed during technical review |
| Equipment output | Project-specific — confirmed during technical review |
| Qualified rate | Project-specific — confirmed during technical review |
| Equipment operating rate | Project-specific — confirmed during technical review |
| Filling amount | Project-specific — confirmed during technical review |
| Filling pump accuracy | Project-specific — confirmed during technical review |
| Filling accuracy | Project-specific — confirmed during technical review |
| Weighing accuracy | Project-specific — confirmed during technical review |
| Filling method | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
Information for project review
Please share your cell format, chemistry, target capacity, process scope, facility conditions and voltage standard.
