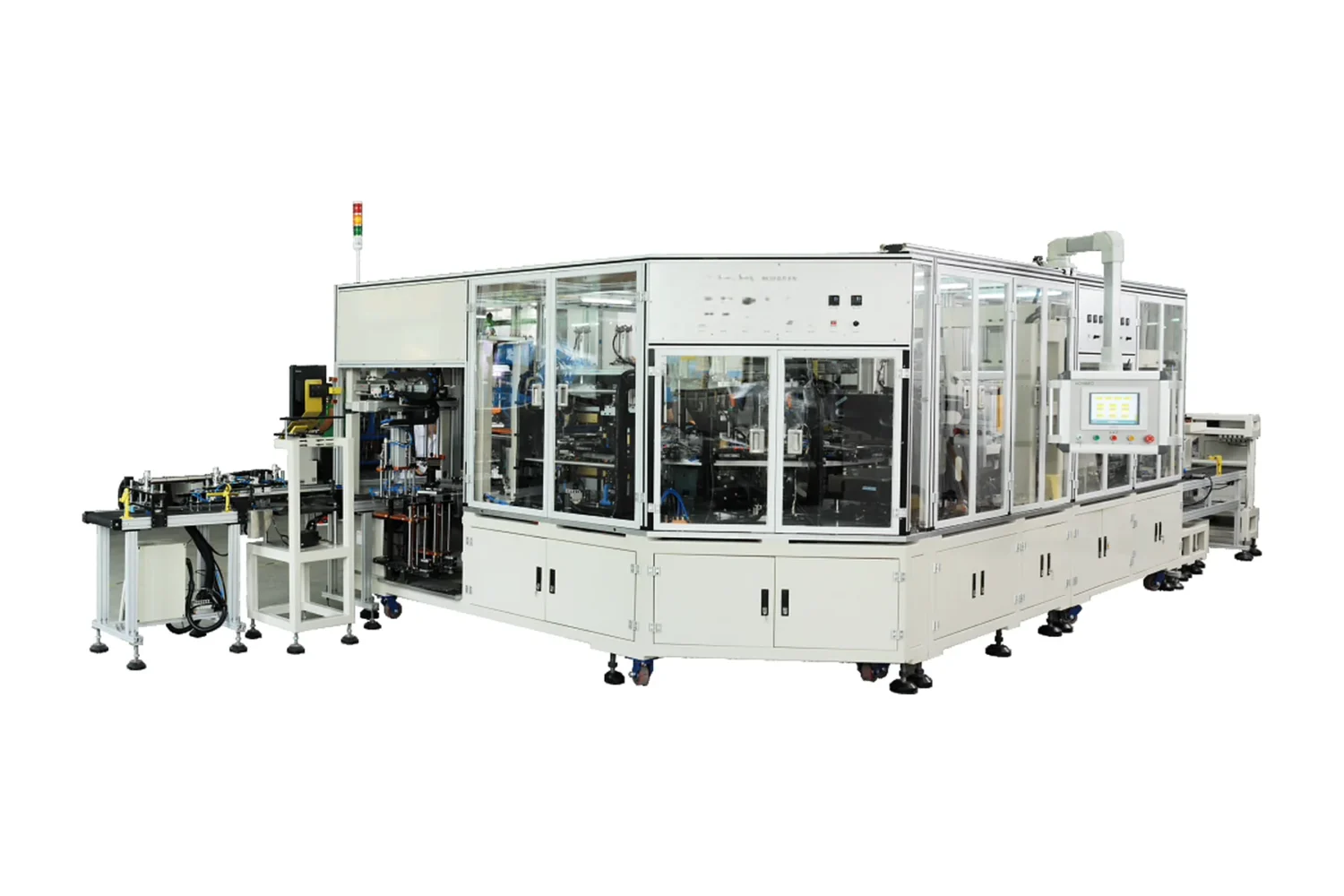

Automatic Packaging Machine for 3C Digital Batteries
Suitable for automatic packaging of pouch batteries. Functions include aluminum-plastic film unwinding, dust removal, slitting, pocket punching and cutting, pocket transfer to the rotary table, folding and top-edge cutting, automatic cell feeding, CCD inspection and sorting, sizing and positioning, pocket insertion and top sealing with tab correction, side sealing, corner sealing, insulation testing, side cutting, coding, NG sorting, PPT protective film application, and discharge.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
Suitable for automatic packaging of pouch batteries. Functions include aluminum-plastic film unwinding, dust removal, slitting, pocket punching and cutting, pocket transfer to the rotary table, folding and top-edge cutting, automatic cell feeding, CCD inspection and sorting, sizing and positioning, pocket insertion and top sealing with tab correction, side sealing, corner sealing, insulation testing, side cutting, coding, NG sorting, PPT protective film application, and discharge.
Key features
- Automatic roll correction and automatic floating-roll tension control for the aluminum-plastic film.
- The air-expansion shaft is mounted on a vertical cantilever plate.
- Fine top-edge cutting ensures alignment.
- Aluminum-plastic film slitting.
- CCD inspection and sorting of bare cells.
- Servo pocket punching with adjustable depth.
- Automatic tab correction before sealing.
- The right and left battery corners are packaged separately.
- Fine side-edge cutting.
- Testing, coding, NG sorting, and independent NG placement.
- Data from each section can connect seamlessly with the MES system.
Technical specifications
| Overall dimensions | Project-specific — confirmed during technical review |
|---|---|
| Equipment weight | Project-specific — confirmed during technical review |
| Rated power | Project-specific — confirmed during technical review |
| Power supply | Project-specific — confirmed during technical review |
| Air supply | Project-specific — confirmed during technical review |
| Vacuum supply | Project-specific — confirmed during technical review |
| Applicable product range | Project-specific — confirmed during technical review |
| Equipment output | Project-specific — confirmed during technical review |
| Qualified rate | Project-specific — confirmed during technical review |
| Equipment operating rate | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
Information for project review
Please share your cell format, chemistry, target capacity, process scope, facility conditions and voltage standard.
