Equipment / configured to order

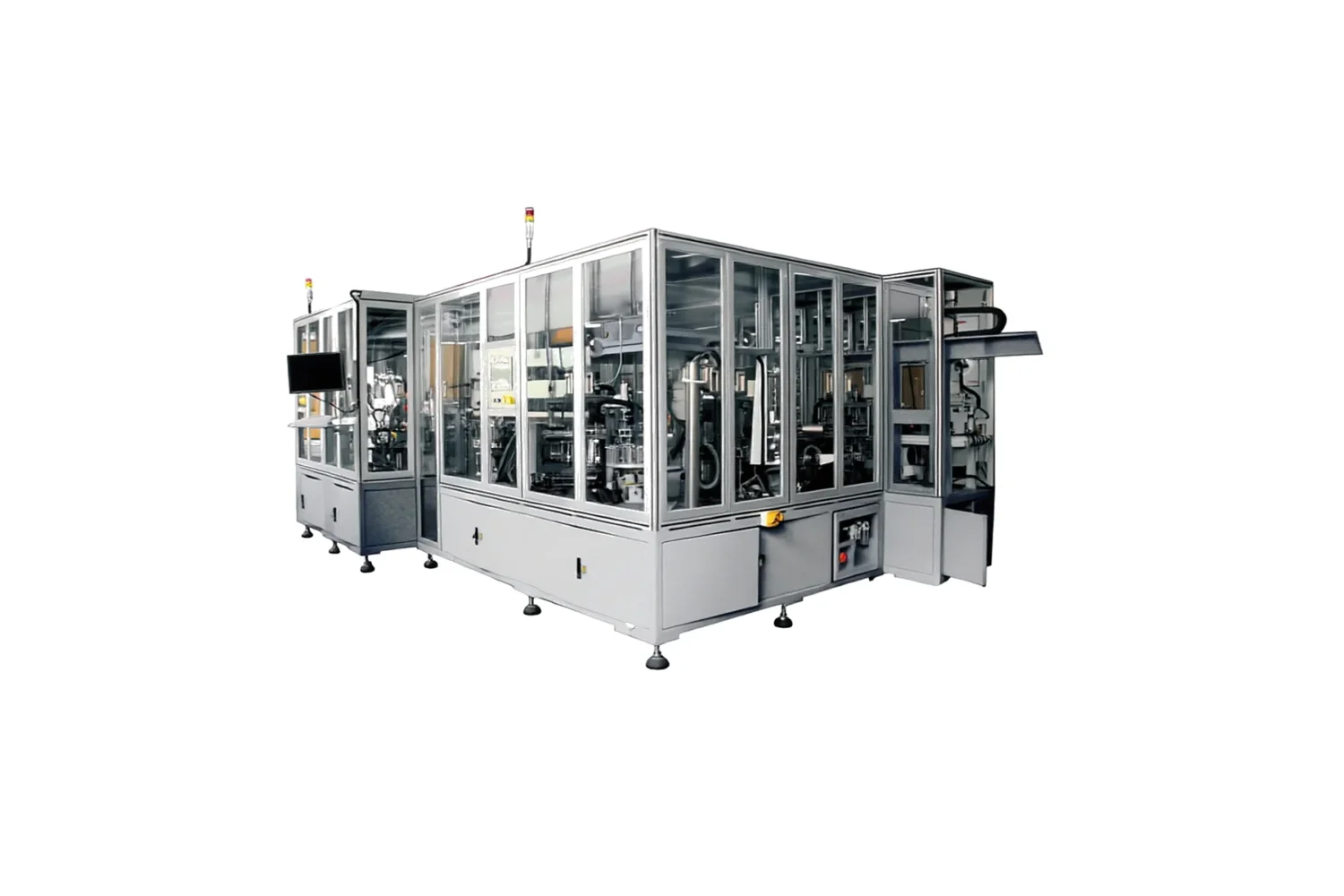

Fully Automatic 3C Battery Ultrasonic Welding Machine
Suitable for automatic ultrasonic welding of stacked or wound 3C battery cells. Functions include pre-welding and post-welding short-circuit testing, automatic tab feeding and welding, post-welding tab cutting, tab bending, weld-surface burr pressing, protective tape application, post-bending glue dispensing, and automatic OK/NG sorting. Mature functional modules can be flexibly configured to user requirements.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
Suitable for automatic ultrasonic welding of stacked or wound 3C battery cells. Functions include pre-welding and post-welding short-circuit testing, automatic tab feeding and welding, post-welding tab cutting, tab bending, weld-surface burr pressing, protective tape application, post-bending glue dispensing, and automatic OK/NG sorting. Mature functional modules can be flexibly configured to user requirements.
Key features
- Pre-welding cell feeding flexibly interfaces with a belt, material frame, or the preceding process.
- Incoming materials can be equipped with hot-pressing testing to remove defective cells automatically.
- Key processes can use mechanical or CCD cell positioning.
- Pre-welding can be configured for sheet or roll material with automatic length cutting and automatic protective-sheet welding.
- Cathode and anode identification and dedicated dust removal are provided during pre-welding and final welding.
- Ultrasonic welding is firm, without weak welds, vibration powder, diaphragm damage, melted insulating adhesive, or shock-cracked foil.
- CCD can be configured to inspect tab position accuracy.
- Weld-surface taping options include flat, L-type, and Z-type taping.
- Tab bending and glue-dispensing fixation can be configured to customer requirements.
- All accessories support non-stop material changes.
- Post-welding cell discharge flexibly interfaces with a belt, material frame, or the following process.
- The control system has a flexible design with automatic diagnosis and repair functions.
- Production data for each item can connect seamlessly with the MES system.
Technical specifications
| Type | Project-specific — confirmed during technical review |
|---|---|
| Applicable range | Project-specific — confirmed during technical review |
| Welding and taping accuracy | Project-specific — confirmed during technical review |
| Output | Project-specific — confirmed during technical review |
| Tab welding method | Project-specific — confirmed during technical review |
| Qualified rate | Project-specific — confirmed during technical review |
| Equipment operating rate | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Power | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
| Dimensions | Project-specific — confirmed during technical review |
| Weight | Project-specific — confirmed during technical review |
Information for project review
Please share your cell format, chemistry, target capacity, process scope, facility conditions and voltage standard.
LET’S DEFINE YOUR PROJECT
Your line starts with a conversation.
Share what you want to make, where you are in the process, and what your team needs to learn.
