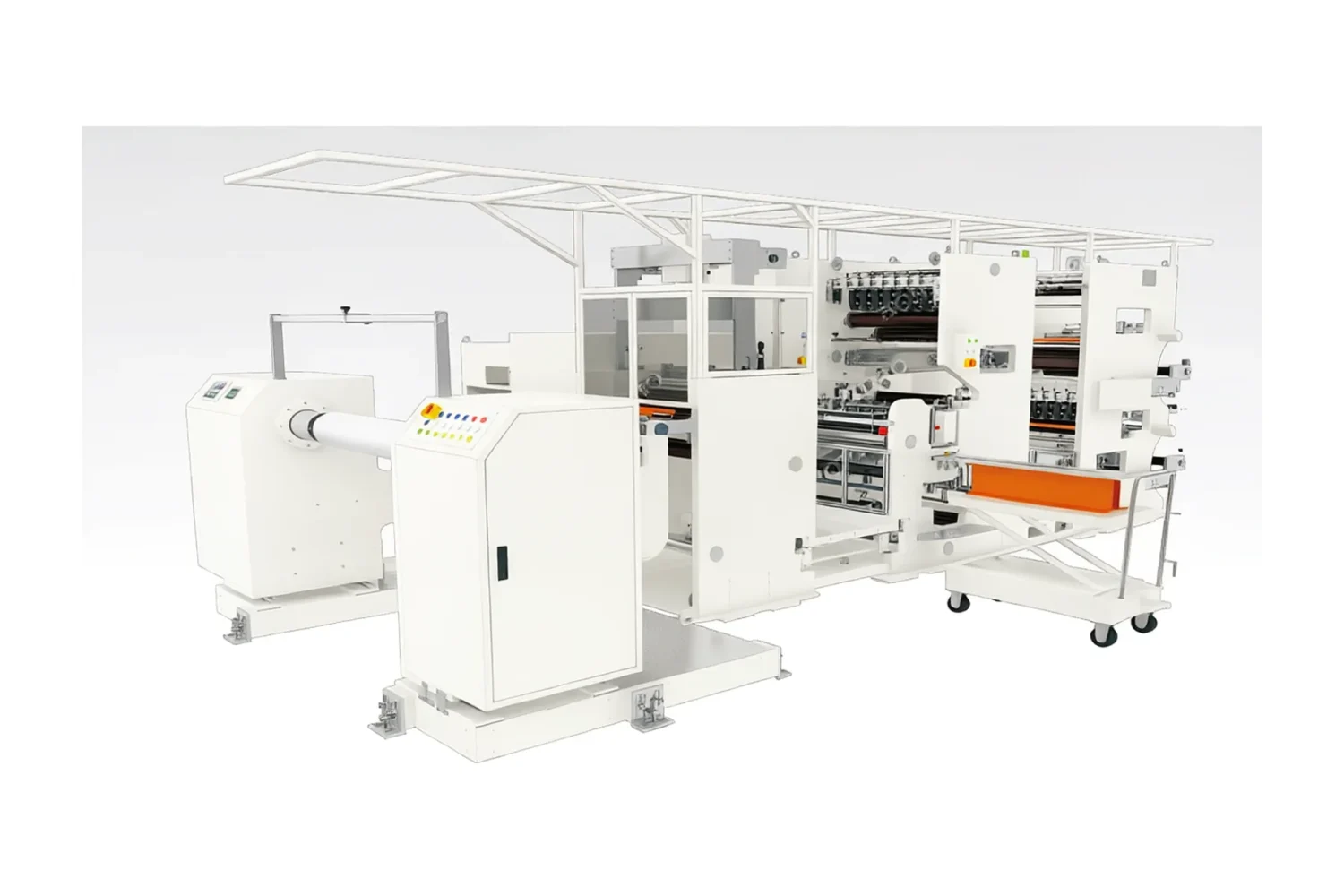

CCD Slitter with AGV Feeding
A CCD slitter with AGV feeding, online electrode-coil inspection, automatic coil threading, dust removal, and automatic rewinding and unloading functions.
Typical applications
Discuss your intended cell design and application with our team.
Customization scope
The equipment configuration is defined around your project requirements.
Overview
A CCD slitter with AGV feeding, online electrode-coil inspection, automatic coil threading, dust removal, and automatic rewinding and unloading functions.
Key features
- CCD online inspection of front and back electrode coils and automatic labeling of defective electrode pieces.
- CCD-based automatic closed-loop correction and slitting of the scraping area.
- Automatic chain-driven coil threading mechanism.
- Automatic closed-loop tension control, AGV trolley docking, automatic feeding, and ultrasonic unwinding coil-diameter monitoring.
- Negative-pressure vacuuming cavity with a static elimination device.
- Industrial vacuum cleaner for collecting electrode dust.
- Independent automatic pulling and tension control for edge material on both sides, with separate bins for automatic collection.
- Upper and lower slip shafts ensure equal winding tension, with automatic rewinding, pushing, and unloading.
- The slitting knife seat structure supports tooling changeover; changeover time is confirmed during technical review.
- Optional ceramic slitting knife and cursor-assisted positioning for rewinding and unwinding.
- Multi-section structure for convenient operation and maintenance.
Technical specifications
| Slitting width | Project-specific — confirmed during technical review |
|---|---|
| Machine speed | Project-specific — confirmed during technical review |
| Slitting speed | Project-specific — confirmed during technical review |
| Burr | Project-specific — confirmed during technical review |
| Slitting width accuracy | Project-specific — confirmed during technical review |
| Winding edge alignment | Project-specific — confirmed during technical review |
| Unwinding and rewinding diameter | Project-specific — confirmed during technical review |
| Working volume | Project-specific — confirmed during technical review |
| Power | Project-specific — confirmed during technical review |
| Voltage | Project-specific — confirmed during technical review |
| Dimensions | Project-specific — confirmed during technical review |
| Weight | Project-specific — confirmed during technical review |
Information for project review
Please share your cell format, chemistry, target capacity, process scope, facility conditions and voltage standard.
